Side view of the WorkshopTab 2 from VDO with the software running. Icons show various functions - such as vehicle calibration.

Continental-Infograph-Tachographcheck-4-0-(2)

VDO WORKSHOP SERVICES CONTRACT

Reliable support and a full-service package – everything your workshop needs for smooth and compliant tachograph testing.

Our services for authorized workshops include:

Training management
48-hour exchange service for WorkshopTab
Hotline and online support
Software updates, software upgrades and maintenance offers
Calibration of the WorkshopTab
Extensive online documentation and knowledge base (VDO Extranet)
Data service for registering new sealing and KITAS serial numbers
Revision and administration

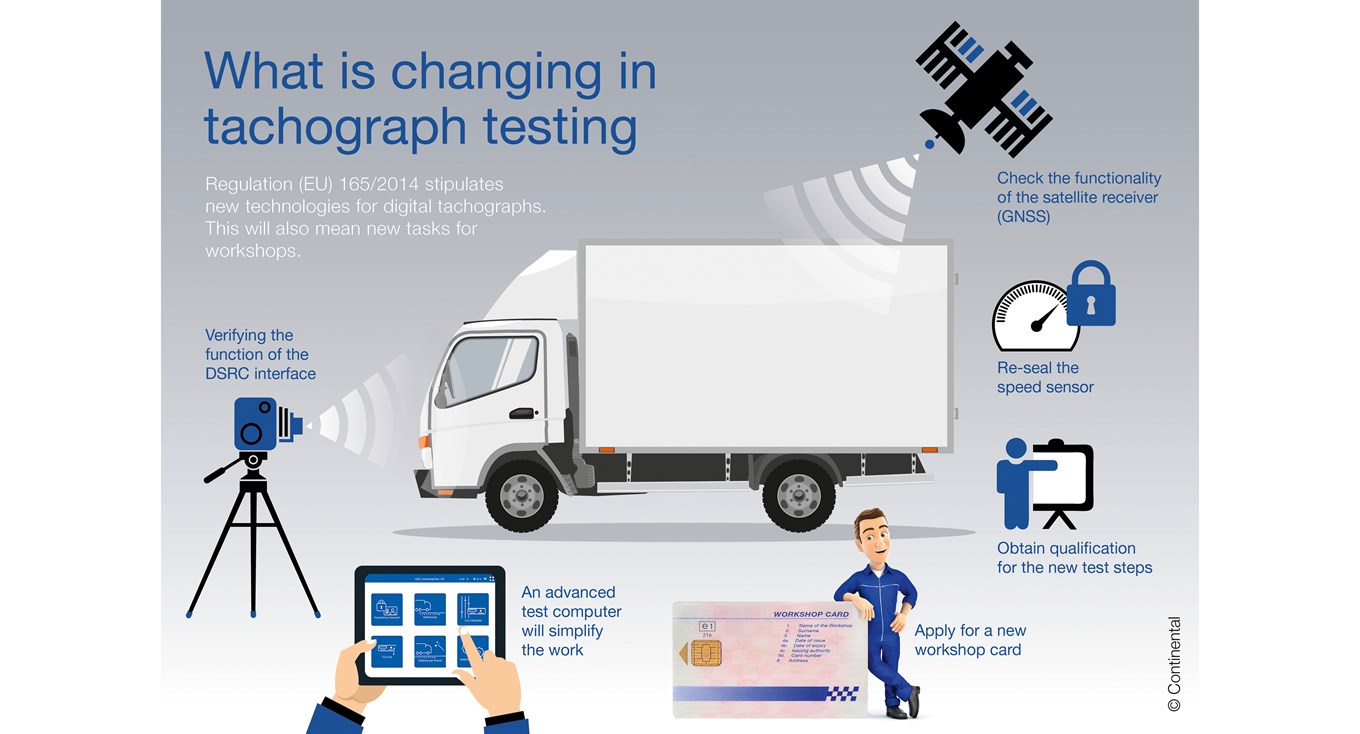

Additional Tests on Smart Tachographs

TESTING THE DSRC INTERFACE

The DSRC interface is tested using a suitable test device such as a DSRC meter, which simulates the monitoring situation of the supervisory authorities by means of a radio beacon. A WorkshopTab copies the data via Bluetooth and prepares it in a clearly structured report.

TESTING THE GNSS FUNCTIONS

The test of the GNSS function examines whether the satellite recipient is working properly. You can also perform this test directly via the WorkshopTab and without additional devices. If you cannot receive a sufficiently strong signal in your auto repair shop, VDO will be abel to provide you with the GNSS Repeater Kit technology in the future to boost the satellite signal.

RESEALING OF THE KITAS 4.0

In the future, the speed sensor must be resealed. The new seals must be procured from a certified supplier and also registered with their unique identification number. The integrated WorkshopTab camera allows you to register the KITAS and new seal simply by scanning the 2D codes.

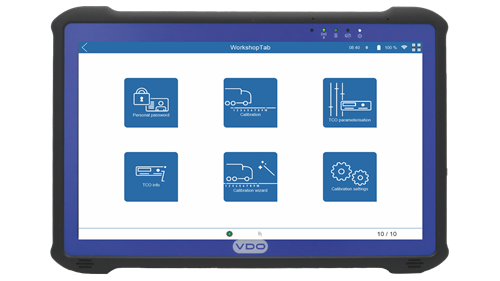

THE NEW WORKSHOPTAB 2 An investment that pays off

The latest generation VDO WorkshopTab is perfect for checking and calibrating intelligent tachographs. If you do not already have a WorkshopTab, now is the right time to invest in this innovative technology. With the latest wireless WorkshopTab 2, every function at the convinience of your fingertips at the auto repair shop. The WorkshopTab communicates excellent with the entire test environment and simplifies the test process maximally.

Everything at your fingertips – no separate process steps, less walking around required for auto repair shop employees
Integrated GNSS and DSRC testing as well as KITAS documentation
Up-to-date technical service information, installation instructions and other relevant data can be retrieved immediately from the Cloud
Documentation and print commands can be entered into the device directly
Modular structure, customizable functional scope, maximum freedom of movement thanks to the wireless connection to peripheral devices
Digitally guided test sequence (calibration wizard) as well as a plausibility check via a clear comparison of new and old measurement values immediately after a measurement has been taken
