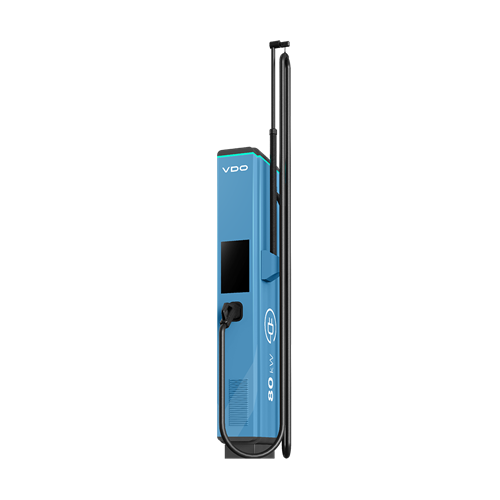

Standalone Slim Charger (DC)

VDO's 80 kW Standalone Slim Charger is the space-saving solution that does not compromise on power, efficiency, reliability and quality.

Key features include:

✔ 1 x CCS charging points

✔ Connectivity LAN (standard) or 4G (optional)

✔ 10ʺ LED screen


Technical specifications



AC input

Input voltage:

3 Phase 400 VAC

Input frequency:

50 Hz

Power factor:

≥0.99 (load 100 %);
≥0.98 (load 50 %~100 %)

Input current max :

135 A

DC output

Protocol:

Mode 4

Output power:

80 kW

Output voltage range:

150 – 1000 V DC (nominal - 750 V)

Output current range:

250 A continuous per outlet

Voltage stabilized accuracy:

≤±0.5 %





Operating environment

Efficiency:

>96 %

Operating/ambient temperature:

-25 °C to 60°C, derating from 45 °C

Storage temperature:

-40 °C to 85 °C

Pressure/altitude:

79 kPa~106 kPa/2000 m

Cooling:

Liquid cooling

Dimensions (HxWxD):

2200 x 280 x 540 mm

Weight:

 approx. 230 kg

According to European Standards:

German Eichrecht, MID, EN 61439-1, CE in compliance with (2014/30/EU, 2014/35/EU, 2014/53/EU), AFIR

Treatment:

Stainless steel + powder coating

Number of charging points:

1 x CCS

CCS cable length:

1 x 5 m

DC power plug:

Mode 4 (IEC-61851-23/24)
Combo-2 (DIN 10121)

Back office protocol:

OCPP 1.6J/2.01

Start-Stop:

RFID card

IP grade:

54 IEC 60529
