Standalone Power Charger

Standalone Power Charger for trucks

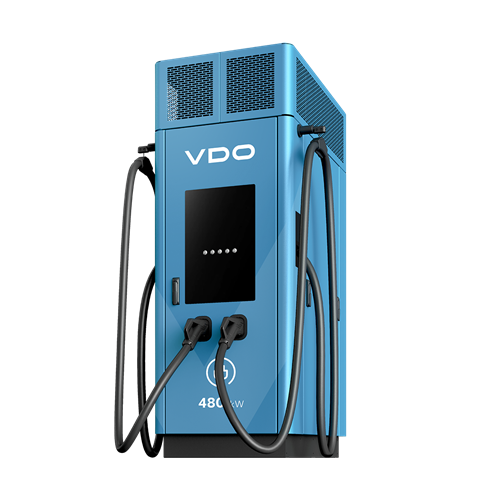

VDO’s 480 kW Standalone Power Charger provides the perfect mix of high quality, efficiency, reliability and cost-effectiveness in EV charging for heavier commercial vehicles.

Key features include:

✔ Dynamic load balancing (Matrix)

✔ 2 x CCS charging points

✔ Connectivity LAN (standard) or 4G (optional)

✔ 10ʺ LED screen

Technical specifications

AC input

Input voltage:	3 Phase 400 VAC
Input frequency:	50 Hz
Power factor:	≥0.99 (load 100 %); ≥0.98 (load 50 %~100 %)
Input current max :	480 kW: 800 A

DC output

Protocol:	Mode 4
Output power:	480 kW
Output voltage range:	150 – 1000 V DC (nominal - 750 V)
Output current max.:	400 A continuous per outlet ( 600 A boost)
Voltage stabilized accuracy:	≤±0.5 %

Operating environment

Efficiency:	>96 %
Operating/ambient temperature:	-25 °C to 60 °C, derating from 45 °C
Storage temperature:	-40 °C to 85 °C
Pressure/altitude:	79 kPa~106 kPa/2000 m
Cooling:	Liquid cooling
Dimensions (HxWxD):	2250 x 800 x 1200 mm
Weight:	1000 kg
According to European Standards:	EN 61439-1, CE in compliance with (2014/30/EU, 2014/35/EU, 2014/53/EU)
Treatment:	Stainless steel + powder coating
Number of charging points:	2 x CCS + 4 outputs for dispensers
CCS cable length (480 kW):	2 x 5 m
DC power plug:	Mode 4 (IEC-61851-23/24)
Backoffice protocol:	OCPP 1.-6J/2.01
Start-Stop:	RFID card
IP grade:	54 IEC 60529

Start your fleet charging project now

Planning to electrify your fleet or expand existing charging infrastructure? Talk to our team to discuss your requirements, operational setup and rollout timeline. VDO Fleet supports you in selecting the right charging hardware and connects you with qualified partners for implementation.

Whether you are in an early planning phase or already defining technical specifications, we help you move your project forward with confidence.
