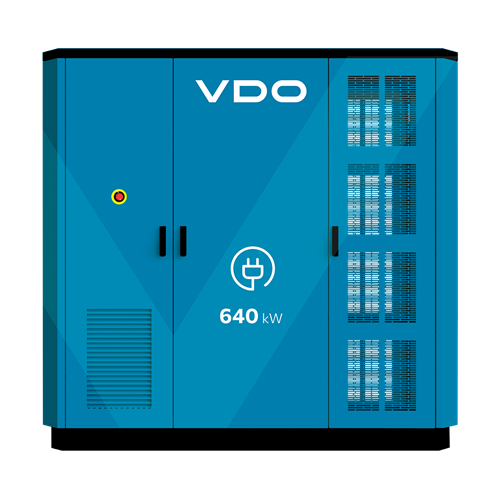

Powerhouse Charging Station with Satellite Dispenser

VDO's 640 kW Powerhouse Charging Station with two satellite dispenser options is the charging solution for large fleets with high demands on charging speed, flexibility, efficiency and reliability.

Key features include:

✔ Maximized charging with 96% efficiency

✔ Up to 8 charging points

✔ Dynamic power allocation to enhance flexibility

✔ Liquid cooling

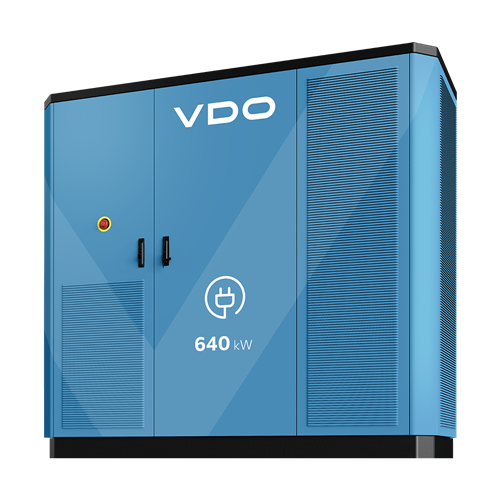

Technical specifications Powerhouse



AC input

Input voltage:

3 Phase 400 VAC

Input frequency:

50 Hz

Power factor:

≥0.99 (load 100 %);
≥0.98 (load 50 %~100 %)

Input current max :

2 x 550 A

DC output

Protocol:

Mode 4

Output power:

640 kW

Output voltage range:

150 – 1000 V DC (nominal - 750 V)

Output current max.:

640 kW: 600A continuous per outlet

Voltage stabilized accuracy:

≤±0.5 %







Operating environment

Efficiency:

>96 %

Operating/ambient temperature:

-25 °C to 60 °C, derating from 45 °C

Storage temperature:

-40 °C to 85 °C

Pressure/altitude:

79 kPa~106 kPa/2000 m

Cooling:

Liquid cooling

Dimensions (HxWxD):

2250 x 1470 x 800 mm

Weight:

1200 kg

According to European Standards:

EN 61439-1, CE in compliance with (2014/30/EU, 2014/35/EU, 2014/53/EU)

Treatment:

Stainless steel + powder coating

Number of charging points:

8 outputs

IP grade:

54 IEC 60529

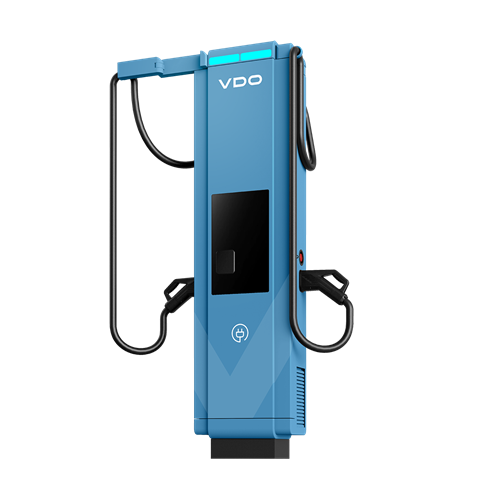

Technical specifications Satellite Dispenser (250A or 500A)



AC input

Input voltage:

230 VAC

Input frequency:

50 Hz

Input current max :

250 A: 1A
500 A: 2A

DC output

Protocol:

Mode 4

Output power:

250 A: 2 x 250 kW
500 A: 2 x 500 kW

Output voltage range:

150 – 1000 V DC

Output current range:

250 A: 2 x 250 A
500 A: 2 x 500 A

Voltage stabilized accuracy:

≤±0.5 %











Operating environment

Operating/ambient temperature:

-25 °C to 50°C, derating from 45 °C

Storage temperature

-40 °C to 70 °C

Pressure/altitude:

80 kPa~110 kPa

Cooling:

250 A: Air cooling
500 A: Liquid cooling

Dimensions (HxWxD):

2160 x 580 x 315 mm

Weight:

250 A: 175 kg
500 A: 190 kg

According to European Standards:

German Eichrecht, MID, EN 61439-1, CE in compliance with (2014/30/EU, 2014/35/EU, 2014/53/EU), AFIR

Treatment:

Stainless steel + powder coating

Number of charging points:

2 x CCS2

CCS cable length:

2 x 5 m

DC power plug:

Mode 4 (IEC-61851-23/24)
Combo-2 (DIN 10121)

Back office protocol:

OCPP 1.6J/2.01

Start-Stop:

RFID card, touch screen

IP grade:

IP55
