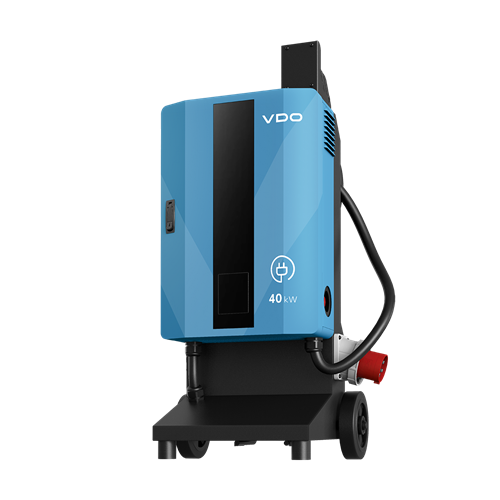

Mobile EV Charger (DC)

VDO’s 40 kW Mobile EV Charger is a compact, portable solution designed for full Mode 4 charging for electric and plug-in hybrid fleets.

Key features include:

✔ High-power DC fast charging for commercial and bus depot environments

✔ Single CSS

✔ Standard LAN connection, 4G optional

✔ AC output (16A/32A) to power additional appliances


Technical specifications



AC input

Input voltage:

3Phase 400VAC (+/- 5%)

Input frequency:

50Hz - 60Hz

Power factor:

≥0.99 (Load100%);
≥0.98 (load 50%~100%)

Input current max :

3 x 67A

DC output

Protocol:

Mode 4

Output power:

40 kW

Output voltage range:

150 - 10000VDC

Output current range:

0 - 100A / 0 - 125A

Voltage stabilized accuracy:

≤±0.5%



AC output

Output power:

22kW (400V 32A)

Output voltage range:

230 - 400VDC

Output current range:

0 - 16A/0 - 32A







Operating environment

Efficiency:

>96%

Operating/ambient temperature:

-25 °C to 55 °C

Storage temperature

-40 °C to 75 °C

Pressure/altitude:

79kPa~106kPa/2000m

Cooling:

Air cooling fans

Dimensions (HxWxD):

1150 x 550 x 500 mm

Weight:

approx. 92 kg

According to European Standards:

EN 61851-1 2011, EN 6185123-2014, CE

Treatment:

Stainless steel + Anti-corrosion and powder coating

Number of charging points:

1x CCS

CCS cable length:

3m

DC power plug:

Mode 4 (IEC-61851-23/24)
Combo-2 (DIN 10121)

Back office protocol:

OCPP 1.6 / 2.01 optional 4G

Start-Stop:

RFID-card

IP grade:

54 IEC 60529


Start your fleet charging project now

Planning to electrify your fleet or expand existing charging infrastructure? Talk to our team to discuss your requirements, operational setup and rollout timeline. VDO Fleet supports you in selecting the right charging hardware and connects you with qualified partners for implementation.

Whether you are in an early planning phase or already defining technical specifications, we help you move your project forward with confidence.

Other VDO Fleet Charging Solutions

VDO-Fleet-EV-Charger-Standalone-180Kw-1

All-in-one Charging Stations (DC)

VDO-Fleet-EV-Charger-Powerhouse

Powerhouse Charging Station

VDO-Fleet-EV-Charger-Standalone-Slim-1

Standalone Slim Charger

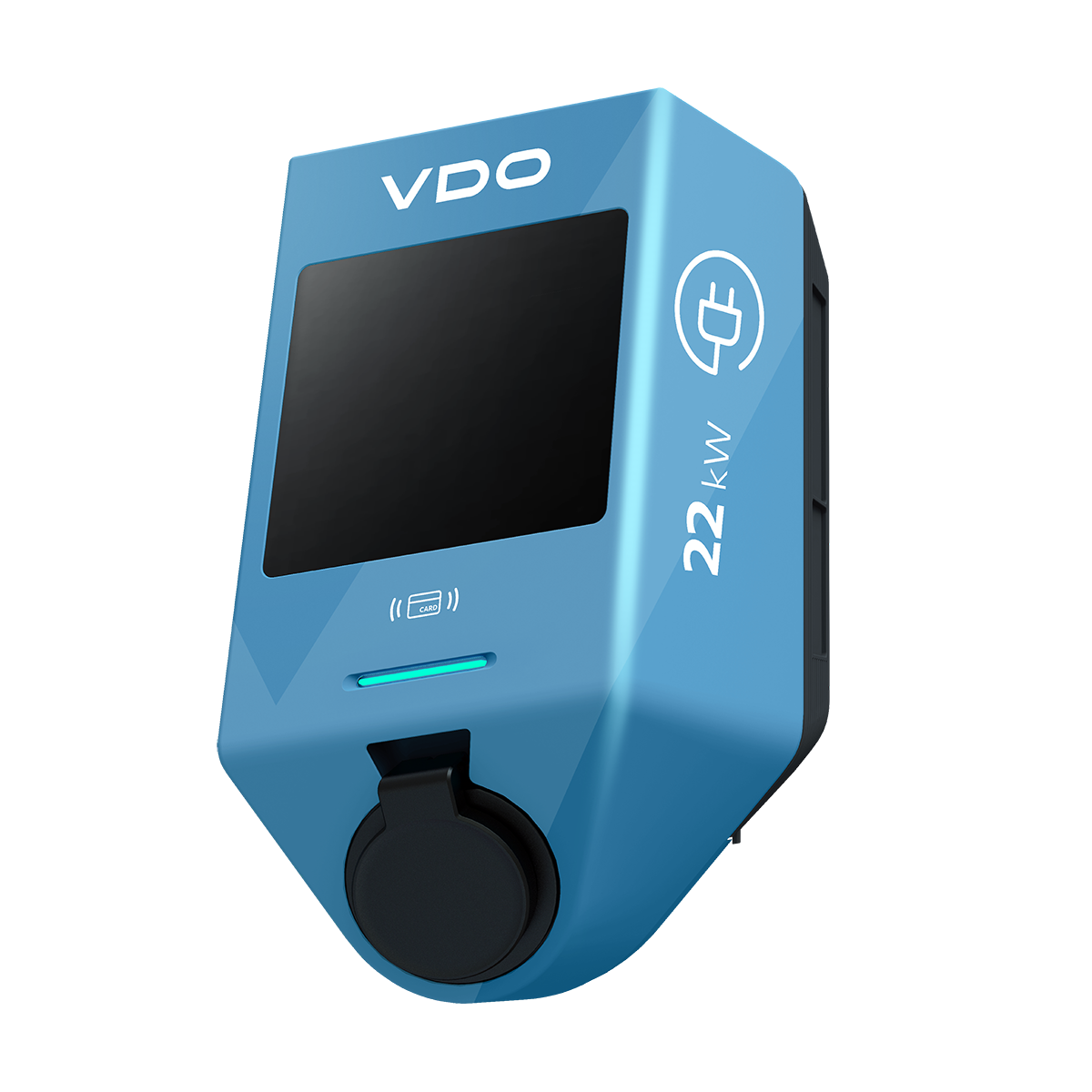

VDO-Fleet-EV-Charger-Wallbox-1

AC Wallbox

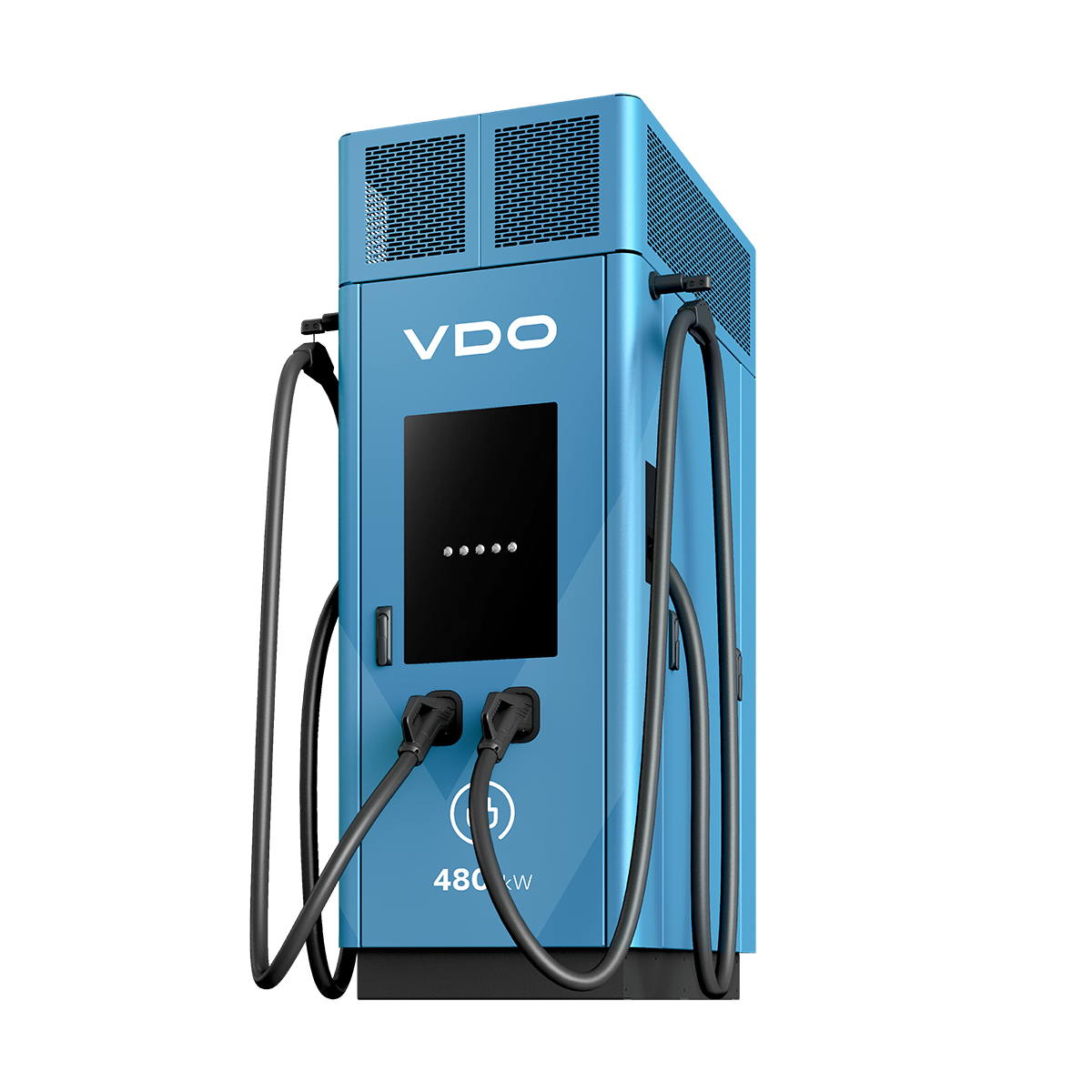

VDO-Fleet-EV-Charger-Standalone-480Kw
