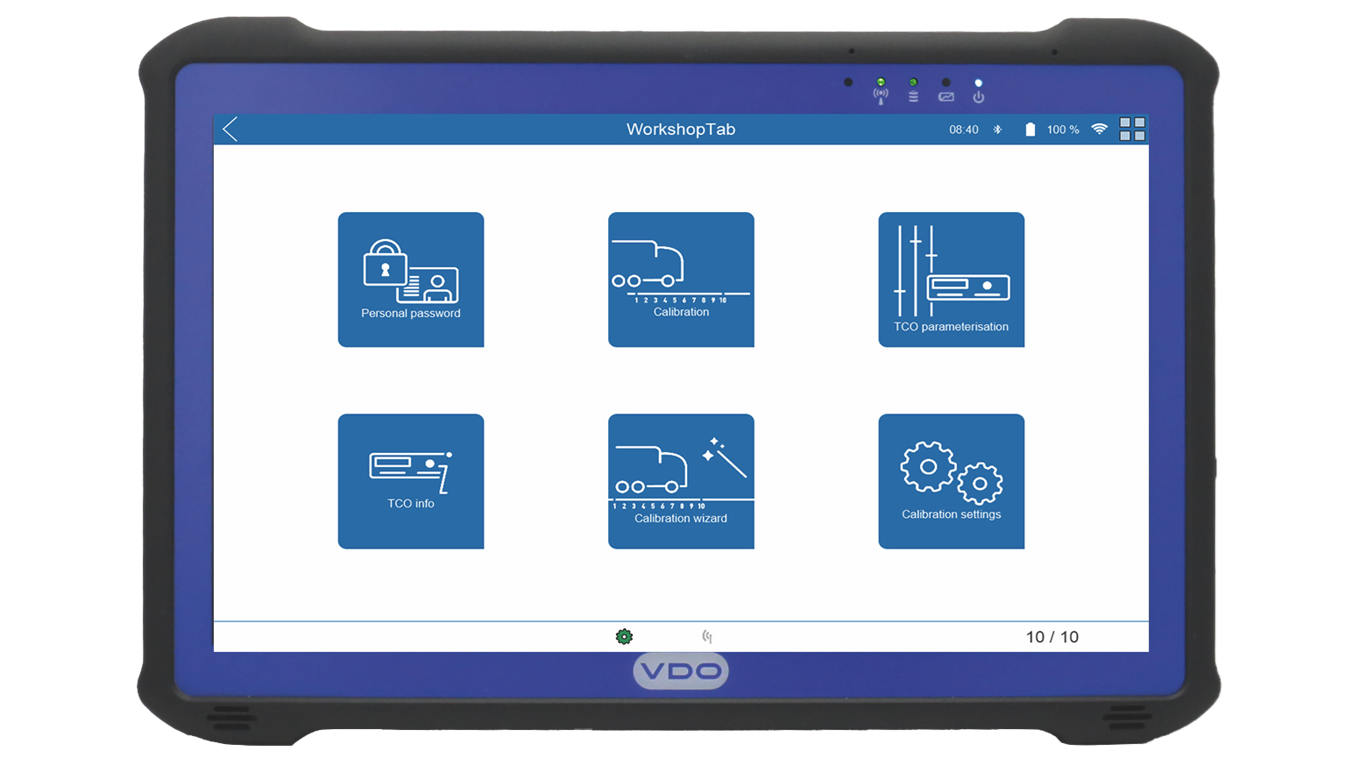

Front view of the WorkshopTab 2 from VDO with the software running. Icons in the home menu show various functions - such as vehicle calibration. zoom-btn

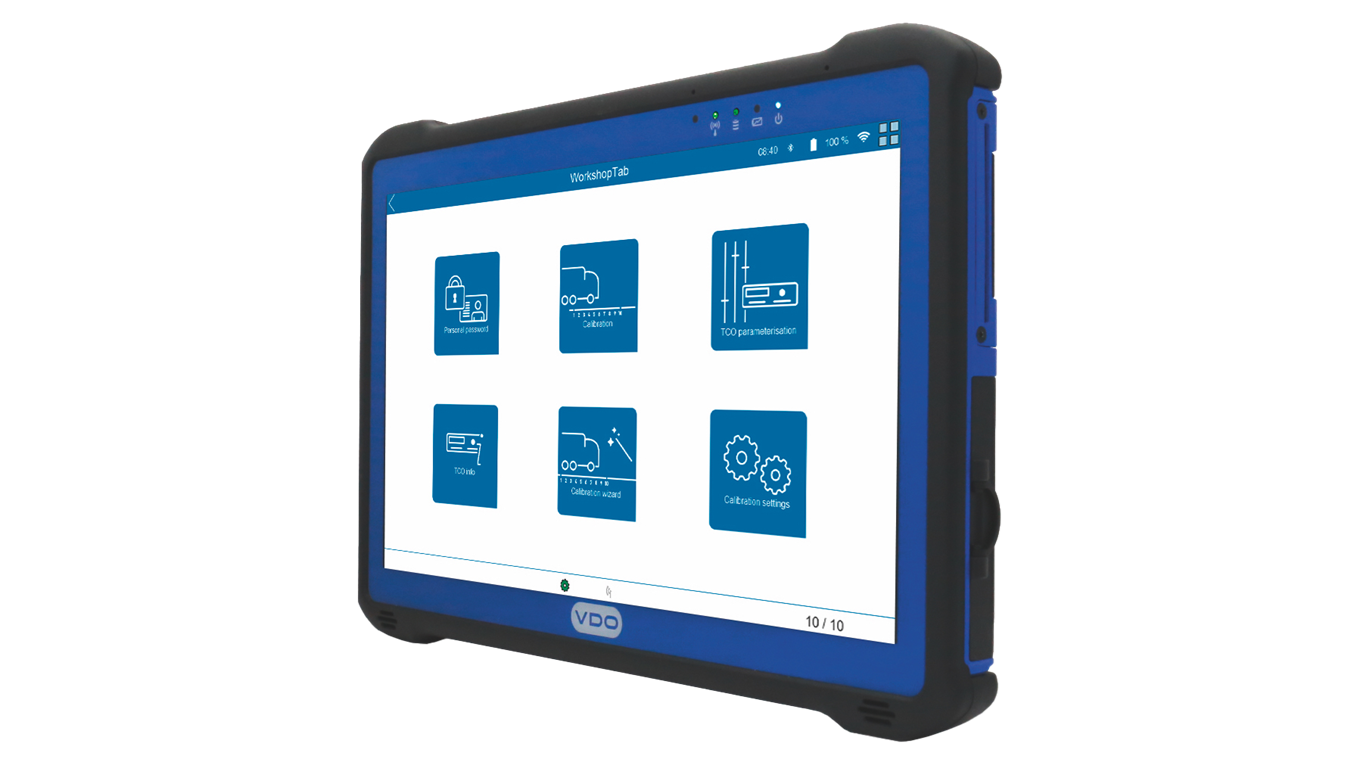

Side view of the WorkshopTab 2 from VDO with the software running. Icons show various functions - such as vehicle calibration.
Side view of the WorkshopTab 2 from VDO with the software running. Icons show various functions - such as vehicle calibration.
zoom-btn

Make calibration a breeze

THE WORKSHOPTAB 2

  • All functions on hand and wireless
  • Maximal mobility through wireless connection to peripheral devices
  • Complete tachograph inspection with immediate online data processing
  • Simple and digitally controlled test sequence (calibration wizard)
  • Integrated GNSS and DSRC check as well as KITAS seal number documentation
  • Plausibility check by clear comparison of new and old measured values immediately after measurement
  • Modular design, customizable range of functions
  • Time saving for all test operations
×

Optimally equipped for the future

The WorkshopTab 2 is the latest all-in-one solution for the periodical inspection directly on the truck. The smart tachographs can be checked and calibrated directly on the vehicle. The software takes care of the paperwork in the background. The relevant documents are transferred from the vehicle to the printer at the push of a button. The WorkshopTab 2 not only reduces sources of error, but also the time for the checks. With the WorkshopTab 2 you are well prepared for the challenges of the coming years.

Get to know the VDO WorkshopTab 2:



The illustration uses various drawings to show the changes for tachographs as a result of EU Regulation No. 165/2014. For example, the functionality of the DSRC interface must be verified, the function of the satellite device must be checked and speed sensors must be resealed. This also has an impact on day-to-day workshop operations, for example due to the need for training and new workshop cards.

With the new calibration routine, KITAS 4.0 defined for the respective DTCO must be tested and registered together with the respective seal during initial installation. This also ensures the traceability of the seal. With the integrated WorkshopTab camera, you can easily register the KITAS and the new seal by scanning the QR code. VDO also offers you a practical cloud solution for the corresponding documentation of KITAS 4.0 and the new seal.

The new intelligent tachograph DTCO 4.1/4.1a uses the GNSS global satellite architecture. An appropriate GNSS calibration is required to ensure that the vehicle position can always be accuratley indicated. This calibration can be performed easily directly via the WorkshopTab. No additional equipment is necessary. If you are unable to receive a sufficiently strong signal in your workshop, we offer you the GNSS Repeater Kit, a technology that amplifies the satellite signal. This allows you to achieve optimum measurement results even in closed rooms.

The WorkshopTab and a corresponding accessory - the practical DSRC Meter from VDO - make testing the DSRC interface intergrated in the DTCO 4.1/4.1a a breeze. The DSRC Meter simulates a check by control officiers and sends the result to your WorkshopTab. It can either be mounted permanently in your workshop or on a tripod.

The new EU regulation requires mandatory map updates to be regularly installed on the DTCO 4.1/4.1a, which must be carried out at the latest at the next upcoming periodic tachograph inspection.

The WorkshopTab is equipped with the appropriate software for this purpose and the WorkshopTab DTCO update cable is required for this purpose.

Please also read the compatibility note for third-party products below.

Compability note for third-party products

With the introduction of the Smart Tachograph Version 2 in accordance with EU Regulation 2016/799 in accordance with Implementing Regulation (EU) 2021/1228, in our case DTCO 4.1/4.1a, the regulations for periodic testing of tachograph systems have also changed in part.

Smart Tachographs Version 2 must be updateable and a map update prescribed by the EU may result in a mandatory update of the tachograph.

This update must then be carried out at the latest during the next periodic check. With our WorkshopTab, this is proactively pointed out and updates can be carried out directly in a user-guided manner.

There will also be a separate update software from VDO for the DTCO 4.1/4.1a. This software can then be used to install all DTCO 4.1/4.1a updates. The software will be available before the first DTCO 4.1/4.1a update and can be installed on Windows 10/11 operating systems.

The exact technical requirements will be announced in due time.

The WorkshopTab patch version 4.9.7 also adds the ability to activate and calibrate the SE5000 Smart 2.

As far as technically possible and if other manufacturers provide appropriate update software, it is our goal to also integrate the update function for all other Smart Tachographs Version 2 on the market into our WorkshopTab in order to offer workshops the best possible service.

FUNCTION MATRIX

With the WorkshopTab you can make any settings for all the available DTCO variants in the market. However, their programming in accordance with the various parameters of the vehicle manufacturers and the setup of individual CAN data recording is only possible with the WorkshopTab.

  DTCO® 1.0-1.x DTCO® 1.4-2.1 DTCO® 2.2 DTCO® 3.0 DTCO® 4.0/4.0e DTCO® 4.1/4.1a
Calibration/Inspection
K / L / W Programming
Parameter Settings
OEM Variant Programming
Enhanced Programming/Universal Devices   Universal DTCO® DTCO® 2.2 Service Universal DTCO® CAN Services "GeoLoc" DTCO® 3.0 Service Universal DTCO® CAN Services "GeoLoc"   DTCO® 4.0 & 4.0e Service Universal DTCO® CAN Services "GeoLoc"   DTCO® 4.1 & 4.1a Service Universal DTCO® CAN Services "GeoLoc"

<

Recommended products

Matching the VDO WorkshopTab 2

Certified-Installation-Partner

VDO Workshop Services

The all-round package for VDO partner workshops

Find out more
Side view of the VDO DCTO 4.1 - the second version of the intelligent tachograph - with running printout and labeling to meet all requirements of the EU Mobility Package I.

DTCO 4.1a

The 2nd version of the smart tachograph

Find out more
To the fleet products

VDO Magazine New, useful and interesting topics for the transport and logistics industry.

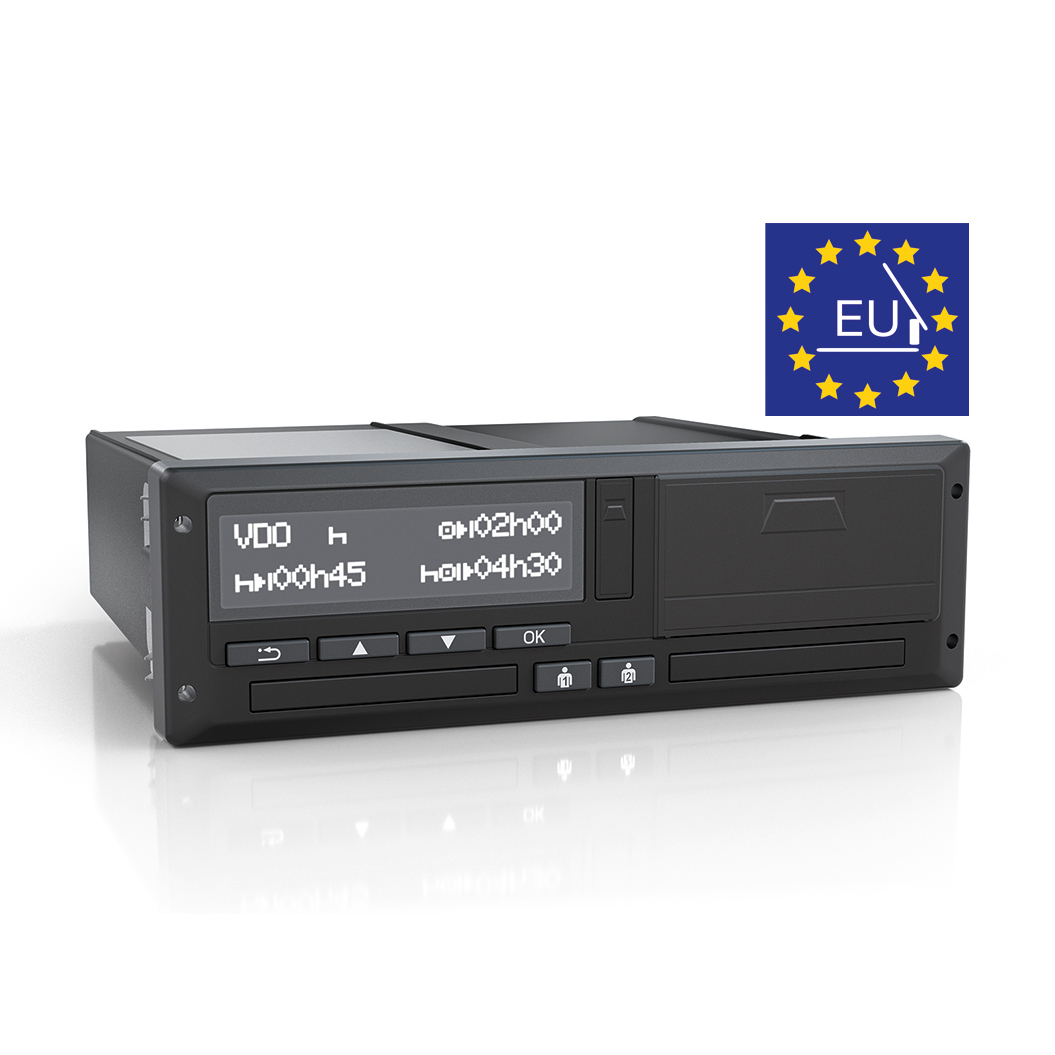

1Zu1
LEGAL

The digital tachograph: Generations and versions of the tachograph

Today, various model versions of the tachograph with different running...
2023-06-Fristen-Teaser
LEGAL

The new smart tachograph is coming - but when?

When do I have to upgrade to the new tachograph?

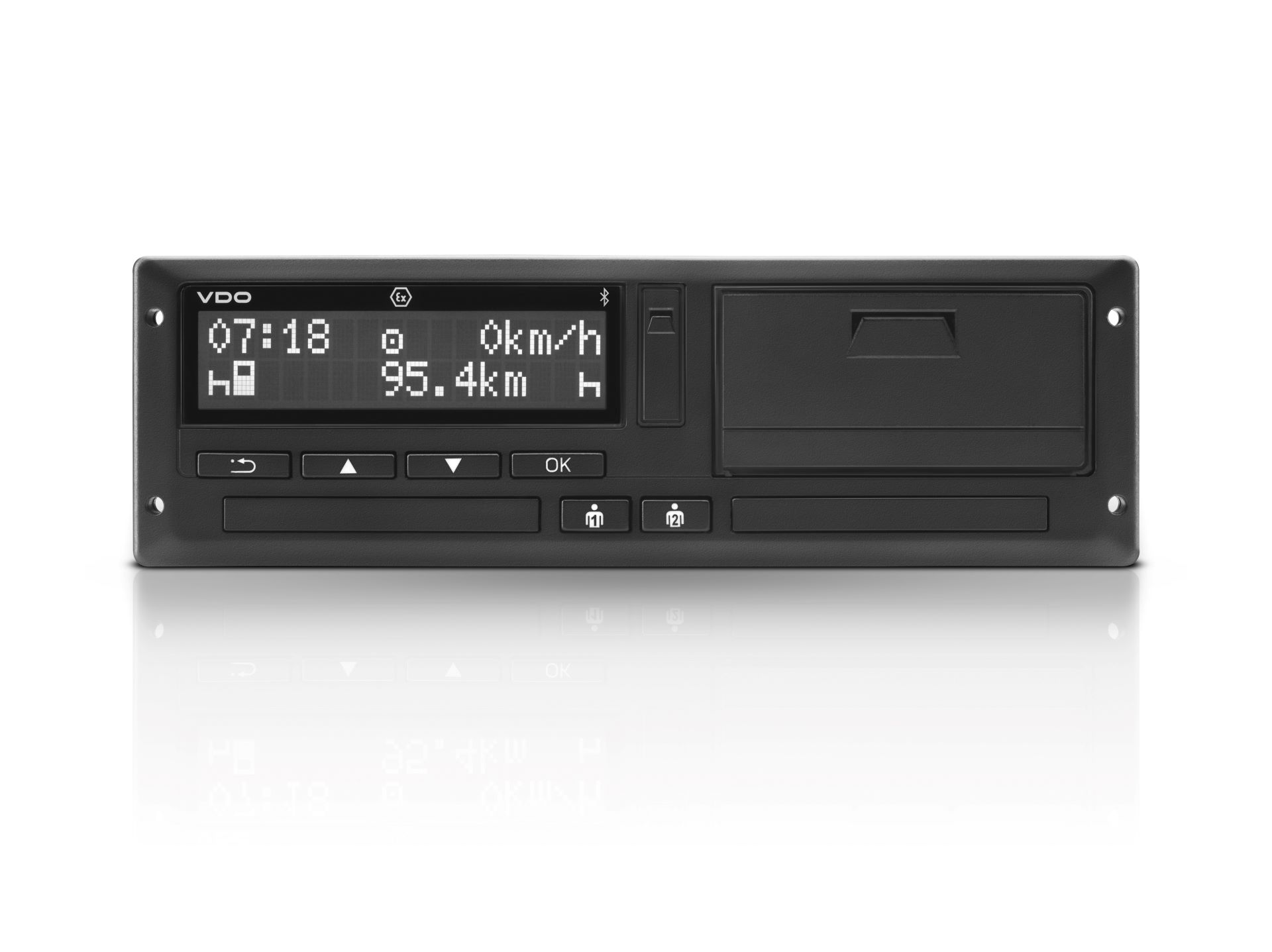

DTCO-41-Front
TECHNOLOGY

Super smart and super secure: What can the new DTCO 4.1 tachograph do?

The smart tachograph of the second version is full of new and extended...

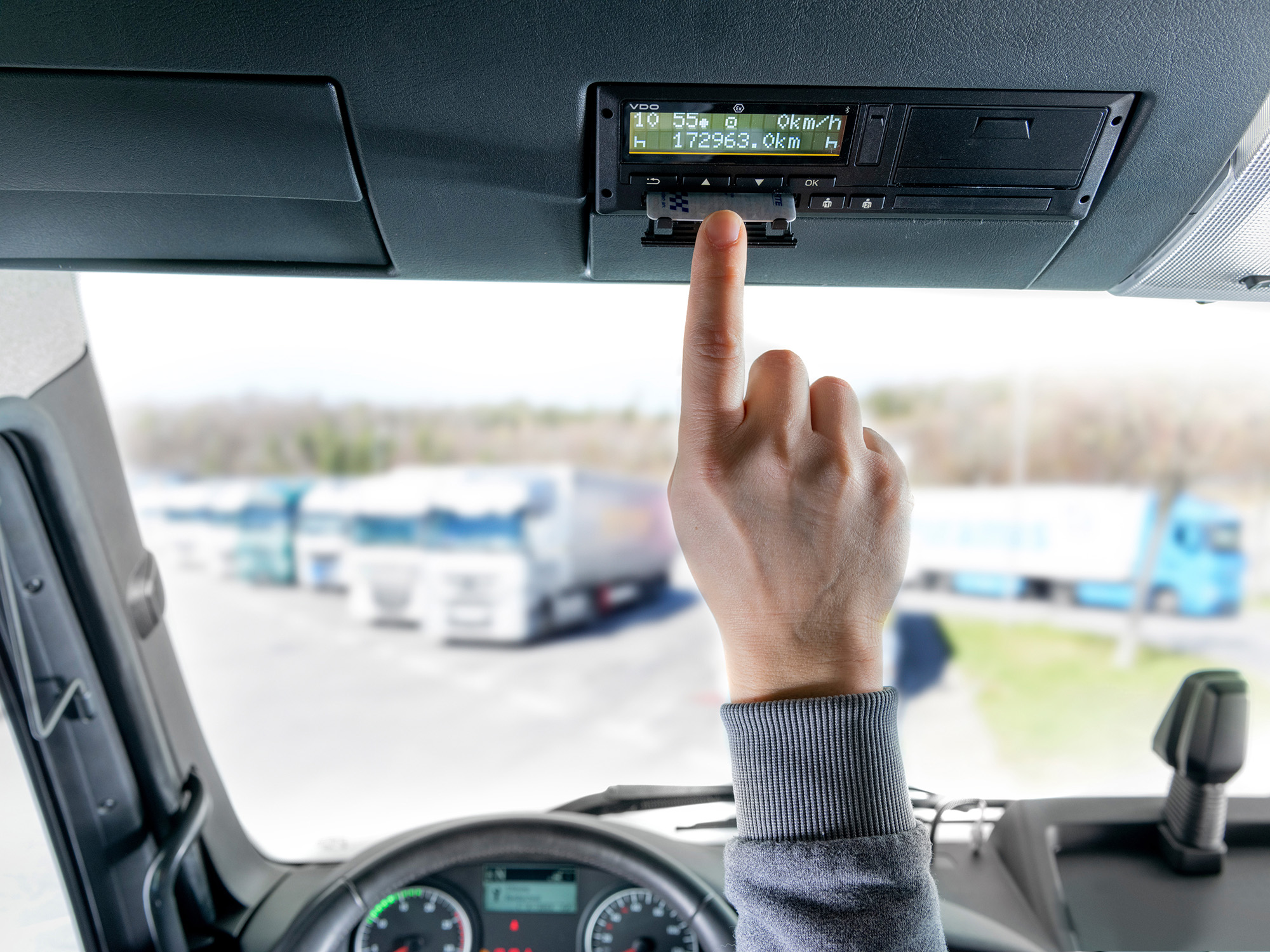

A driver inserts his driver card into the VDO DCTO 4.1 - the second version of the intelligent tachograph. Other trucks in the fleet can be seen blurred in the background through the windshield.
